Design Patterns in life and Ruby — gain an intuitive understanding of OO design patterns by linking them with real-life examples.

The Adapter Pattern is very easy to understand because we interact with it every single day.

If we search for adapter images online, we will see lots of real-life examples using the Adapter Pattern.

Type C to Type A Power Adapter

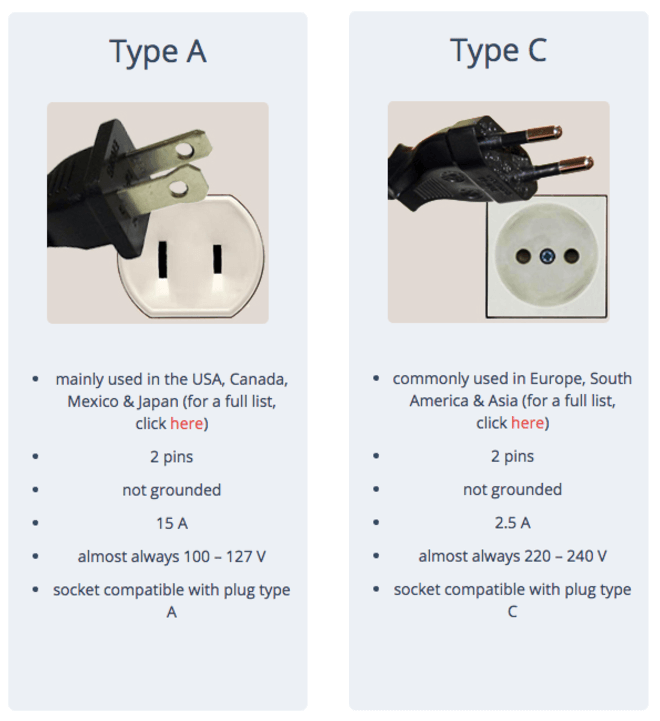

Let’s take a closer look at one of these real-life examples — Type C to Type A Power Adapter.

pc: http://www.worldstandards.eu

The Type A electrical outlet plug is widely used in the US, whereas Type C is widely used in Europe.

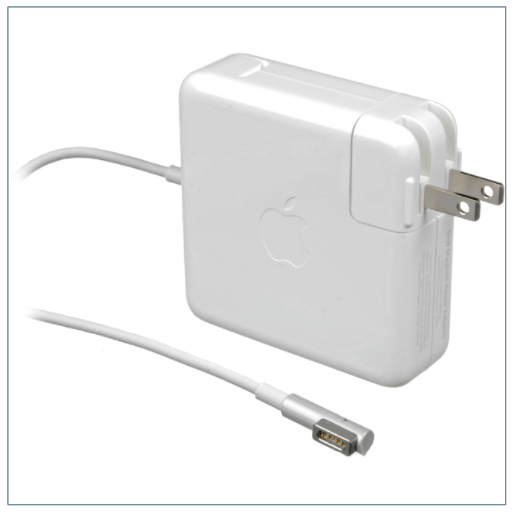

I live in the US, and my MacBook charger has a Type A plug.

We can write a simple TypeAPlug class like this:

class TypeAPlug
  attr_accessor :electricity, :voltage

  def initialize
    @electricity = nil
    @voltage = nil
  end

  def plug_into(outlet)
    self.electricity = outlet.type_a_elec
    self.voltage = outlet.type_a_voltage
  end
end

The plug_into method expects a passed-in outlet that has type_a_elec and type_a_voltage.

Let’s say now I travel to Europe. And there are only Type C outlets:

class TypeCOutlet
  def type_c_elec
    '2.5A electricity'
  end

  def type_c_voltage
    '220-240 voltages'
  end
end

And a Type C outlet provides type_c_elec and type_c_voltage.

I can’t plug my MacBook charger into a Type C outlet because the interface a Type C outlet provides is not compatible with the interface needed by my MacBook charger.

My MacBook charger expects the outlet it plugs into to have type_a_elec and type_a_voltage. An error is raised when the outlet is missing these two methods.

In order to plug my MacBook charger into a Type C outlet, I need an adapter that converts a Type C outlet into a Type A outlet: a Type C to Type A Power Adapter.

class C2AAdapter
  attr_reader :type_c_outlet

  def initialize(type_c_outlet)
    @type_c_outlet = type_c_outlet
  end

  def type_a_elec
    "converting #{type_c_outlet.type_c_elec}"
    # some electric circuit conversion
    '15A electricity'
  end

  def type_a_voltage
    "converting #{type_c_outlet.type_c_voltage}"
    # some electric circuit conversion
    '100 - 127 voltages'
  end
end

The C2AAdapter takes a type_c_outlet and provides two additional methods, type_a_elec and type_a_voltage, to make it compatible with the interface needed by a type_a_plug.

Now I can plug my MacBook charger into a Type C outlet through a Type C to Type A power adapter.

The C2AAdapter is an example of the Adapter pattern.

Definition of the Adapter Pattern

The C2AAdapter converts the interface of a type_c_outlet into the interface of a type_a_outlet so a type_a_plug can plug into a type_c_outlet through a C2AAdapter.

We can also wrap more than one existing interface into one target interface that a client is expecting:

Woohoo!
We just learned the Adapter Pattern together.
It’s time to charge my MacBook before it dies 😉

Takeaways

Next time we will take a look at 1-click-ordering.
